3KW To 8KW Double Bearing Dynamo Alternator High Output Alternator AC Single-phase Alternator

Name: 3KW To 8KW Double Bearing Dynamo Alternator High Output Alternator AC Singlephase Alternator
Brand: GENFOR
Price: 1 USD

Quality 3KW To 8KW Double Bearing Dynamo Alternator High Output Alternator AC Single-phase Alternator for sale

Brand Name : GENFOR

Model Number : GFA11-5.0 B3

Certification : CE

Place of Origin : China

MOQ : Sample accept

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs per month

Delivery Time : 20-25days

Packaging Details : Carton/box

Max.Power : 5.0 KVA

Rated Power : 5.0 KVA

Voltage : 110~240V As required

Speed : 50Hz 3000/60Hz 3600rpm

Copper wire : 100%

Power Factor : 1.0

Shaft ouput : As Request

Shaft Size : 25.5/26mm etc

Match Engine : 186FA Diesel/188 Gasoline

Contact Now

Double Bearing Dynamo Alternator High Output Alternator AC Single-phase Alternator

1.Cast aluminum shell

2.Easy to install with many kinds of machine,such as gasoline/diesel engine

3.100% copper wire,and cold-rolled silicon steel

Insulation Class:CL.F(△T≦130K)

Power Factor:CosΦ=1(Single-phase);CosΦ=0.8(Three-phase)

Rated Voltage:110,115,120,220,230,240,110/220,115/230,120/240,220/380,230/400

DC Output:12V/8.3A(Optional)

Excitation Type:Brush&Brushless

Remarks:Dimensions marked above are according to Honda engine GX160/ GX390

Single-Phase with Eur socket.(socket as request)

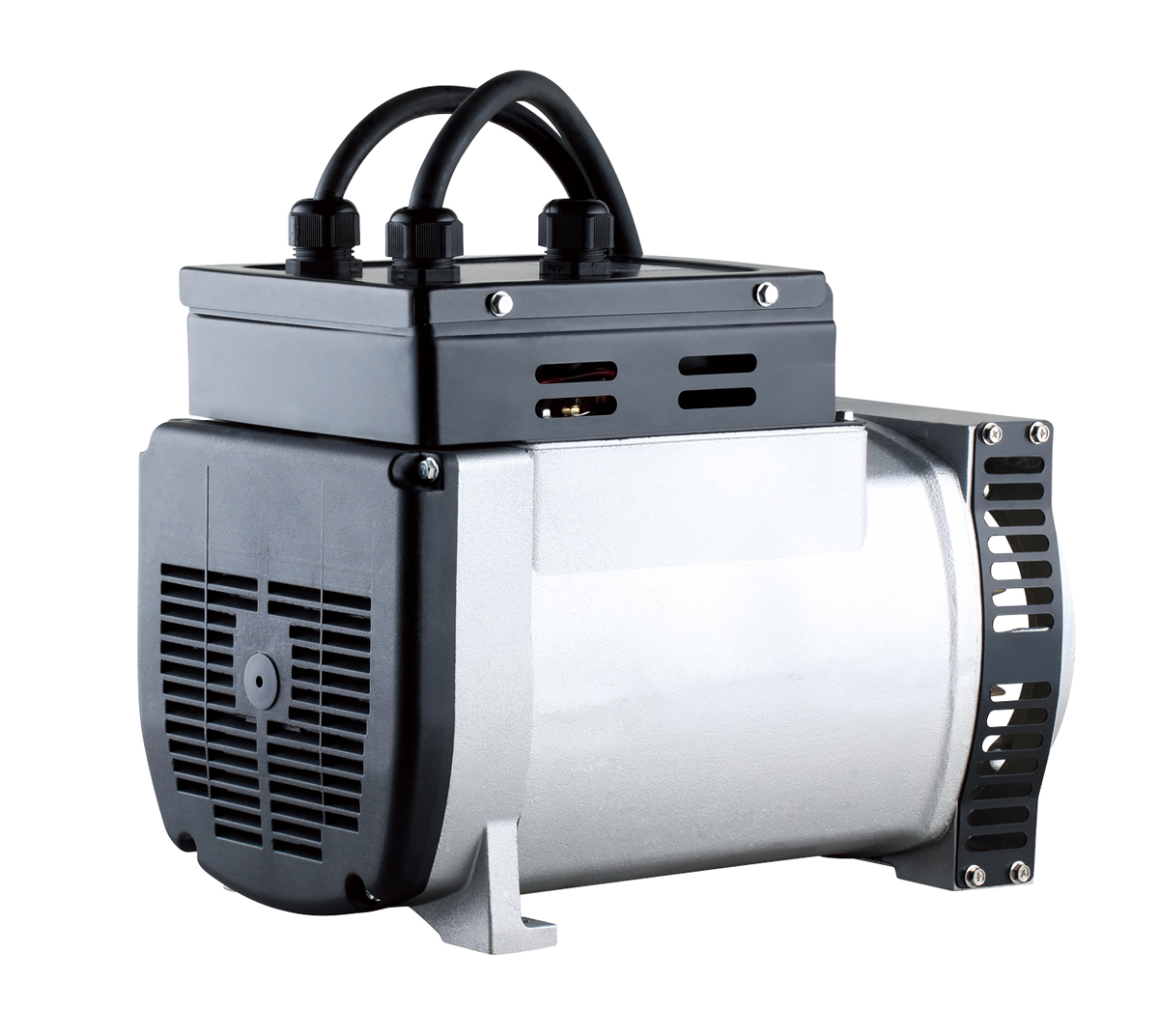

3KW To 8KW Double Bearing Dynamo Alternator High Output Alternator AC Single-phase Alternator

Double Bearing type with Socket

3KW To 8KW Double Bearing Dynamo Alternator High Output Alternator AC Single-phase Alternator

Taper shaft type Three phase with control panel

3KW To 8KW Double Bearing Dynamo Alternator High Output Alternator AC Single-phase Alternator

Single/Three-Phase with Lead output

TECHNICAL DATE
Type		Rated Power (KVA)	Max Power (KVA)	Type		Rated Power (KVA)	Max Power (KVA)
GFA10-2.0 B3	50Hz-3000r.p.m	2.0	2.3	GFA11-5.0 B3	50Hz-3000r.p.m	5.0	5.5
	60Hz-3600r.p.m	2.5	2.8		60Hz-3600r.p.m	5.5	6.0
GFA10-2.5 B3	50Hz-3000r.p.m	2.5	2.8	GFA11-6.0 B3	50Hz-3000r.p.m	6.0	6.5
	60Hz-3600r.p.m	3.0	3.3		60Hz-3600r.p.m	6.5	7.0
GFA10-3.0 B3	50Hz-3000r.p.m	3.0	3.3	GFA11-7.0 B3	50Hz-3000r.p.m	7.0	7.5
	60Hz-3600r.p.m	3.5	4.0		60Hz-3600r.p.m	7.5	8.0
GFA10-4.0 B3	50Hz-3000r.p.m	4.0	4.5	GFA11-8.0 B3	50Hz-3000r.p.m	8.0	8.5
	60Hz-3600r.p.m	5.0	5.5		60Hz-3600r.p.m	8.5	9.0
Note:The data for your information only ,and changes based on practicality

Package.

We have different original packages for selling in different counties.
we also can custom the packages as you want..

We have strict packaging to ensure that the goods are not damaged and safely reach your hands.

Delivery.

Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We will recommend the most suitable shipping method for you.
